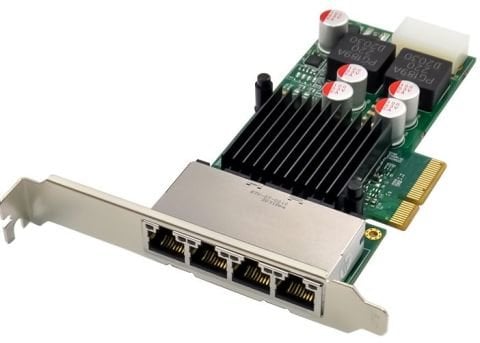

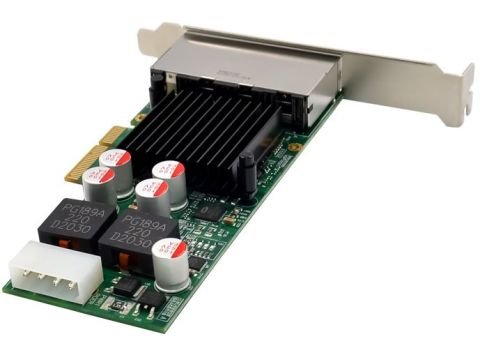

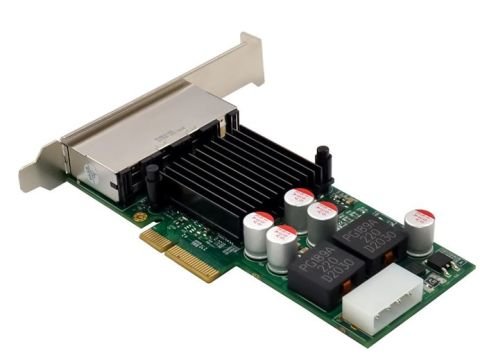

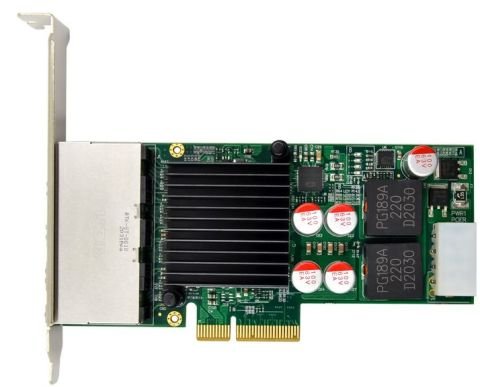

1 GbE 4 Port intel NHI350AM4 Poe+ Vision Frame Grabber Ethernet
9.546,00 TL KDV dahil.
Kategori
Marka
Stok Kodu
POE-i350-T4
Garanti Süresi
24 Ay
Ürün Durumu
Sadece Yeni ve Orjinal Kutulu Ürün satıyoruz.
Fiyat
9.546,00 TL KDV dahil.
PCIe x4 Intel I350 Dört portlu PoE+ Gigabit Vision Ağ Adaptörü
Dört x 1Gbps RJ45 portu , IEEE802.3af, IEEE802.3at Protokolleri, her bir port maksimum 30W güç kaynağı sağlar.
Özellikleri:- - PCI-Express ana bilgisayar arayüzü özellikleri v2.1, 5.0GT/s BUS genişliği ile uyumlu
- - PCI Bus Power Management Interface Specification Rev1.2'ye uyumlu
- - PCI-Express hatları: x4
- - Maksimum iletim hızlarına kadar dört portlu RJ45 destekler
- - IEEE802.3ab, IEEE802.3u ve IEEE802.3 özelliklerine uyumlu
- - IEEE80.23af, IEEE80.23at ağ standardına uyumlu
- - Her bir port maksimum 30W güç kaynağı sağlar
- - Her bir port için güç voltajı: 44-57VDC
- - Yarı çift yönlü işlem ve tüm desteklenen hızlarda tam çift yönlü işlem
- - Katman 2 işlevleri: IEEE 802.3x Akış Kontrolü - IEEE 802.1q VLAN
- - Alıcı taraf ölçekleme (RSS) desteği
- - IPv4, IPv6 protokollerini destekler
- - 9.5K'ye kadar Jumbo Çerçeveleri destekler
- - UDP/TCP ve IP Toplamı Kapama özelliğini destekler
- - Yönetim ve RMON için istatistikler
- - Sanal makineler cihaz kuyrukları için destek
- - Sonraki Nesil VMDq Desteği (8VM'ler)
- - CPU kullanımını sınırlamak ve maksimum kesme hızını iyileştirmek için Kesinti kısıtlama kontrolü
| Essentials | |
| Product Collection | Intel I350 PoE Gigabit Network Adapter |
| Controller Processors | Intel NHI350AM4 |
| Bus Type/Bus Width |
PCI Express* 2.1 (5 GT/s) 4-lane PCI Express; operable in x4, x8 and x16 slots |
| Connections | 4 x RJ-45 (Copper) |
| Data Rate Supported | 10/100/1000 Mbps (Copper) |
|
Cable Distances |
Copper: up to 100 m |
|
Category-3 or higher for 10BASE-T operation Category-5 or higher for 100BASE-TX operation Category-5e or higher for 1000BASE-T operation |
|
|
Bracket |
Full-height bracket installed. Low-profile bracket included in package |
| Dimension |
137 mm x 65 mm (PCIe Board) |
| Technical Specifications | |
|
IEEE Standard Network topology |
IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T |
| IEEE* 802.3 Auto-negotiation | |
| 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant | |
| Integrated PHY for 10/100/1000 Mb/s for multispeed, fulland half-duplex | |
| IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames | |
| Automatic cross-over detection function (MDI/MDI-X) | |
|
IEEE 1588 protocol and 802.1AS implementation |
|
| Interrupt Levels | INTA, INTB, INTC, INTD, MSI, MSI-X |
| System Requirements | |
| Windows Client | Windows 10/ 8.1/ 8/ 7 |
| Windows Sever | 2008 R2/ 2012/ 2012 R2/ 2016/ 2019 |
| Linux |
RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13 |
| Environment & Certification | |
| Power Consumption | Max. 30W/Each port |
| Power Voltage | 44~57VDC/Each port |
| Storage Humidity Maximum | 90% non-condensing relative humidity at 35 °C |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| LED Indicators |
Not illuminated=10 Mb/s; green=100 Mb/s; amber=1 Gb/s (Copper) |
| Certifications | CE FCC RoHS |
1 GbE 4 Port intel NHI350AM4 Poe+ Vision Frame Grabber Ethernet genel Özellikleri
| Slot Demirler | : | Low Profile ( Kısa Demir ), Full Height ( Uzun Demir ) |
| Port Tipi | : | RJ-45 |
| Transfer Hızı | : | 1.25 Gbps / Her Port |
| Port Sayısı | : | 4 Port Quad |
| Marka | : | intel, StorNET |
| Bus type | : | PCIe 2.1 x4 |
| ChipSet | : | intel |
| PoE tipi | : | PoE+ (PTZ Kamera, Video IP Telefon, Alarm Sistemleri - 2 Pair-IEEE 802.3at 25.5 W 30 W) |
