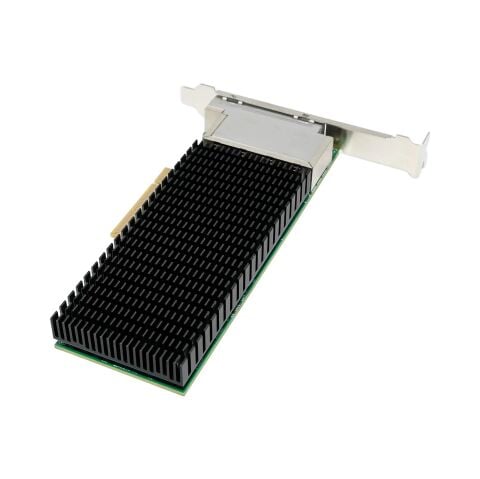

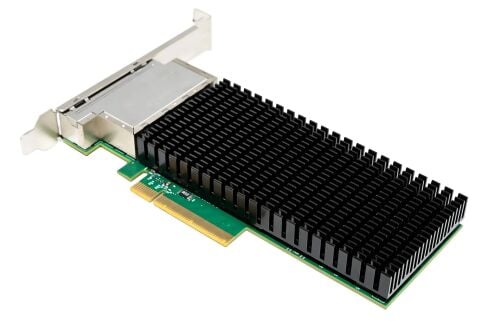

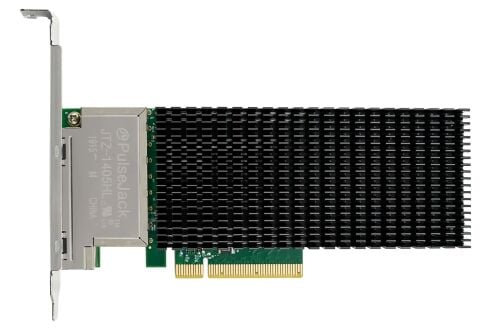

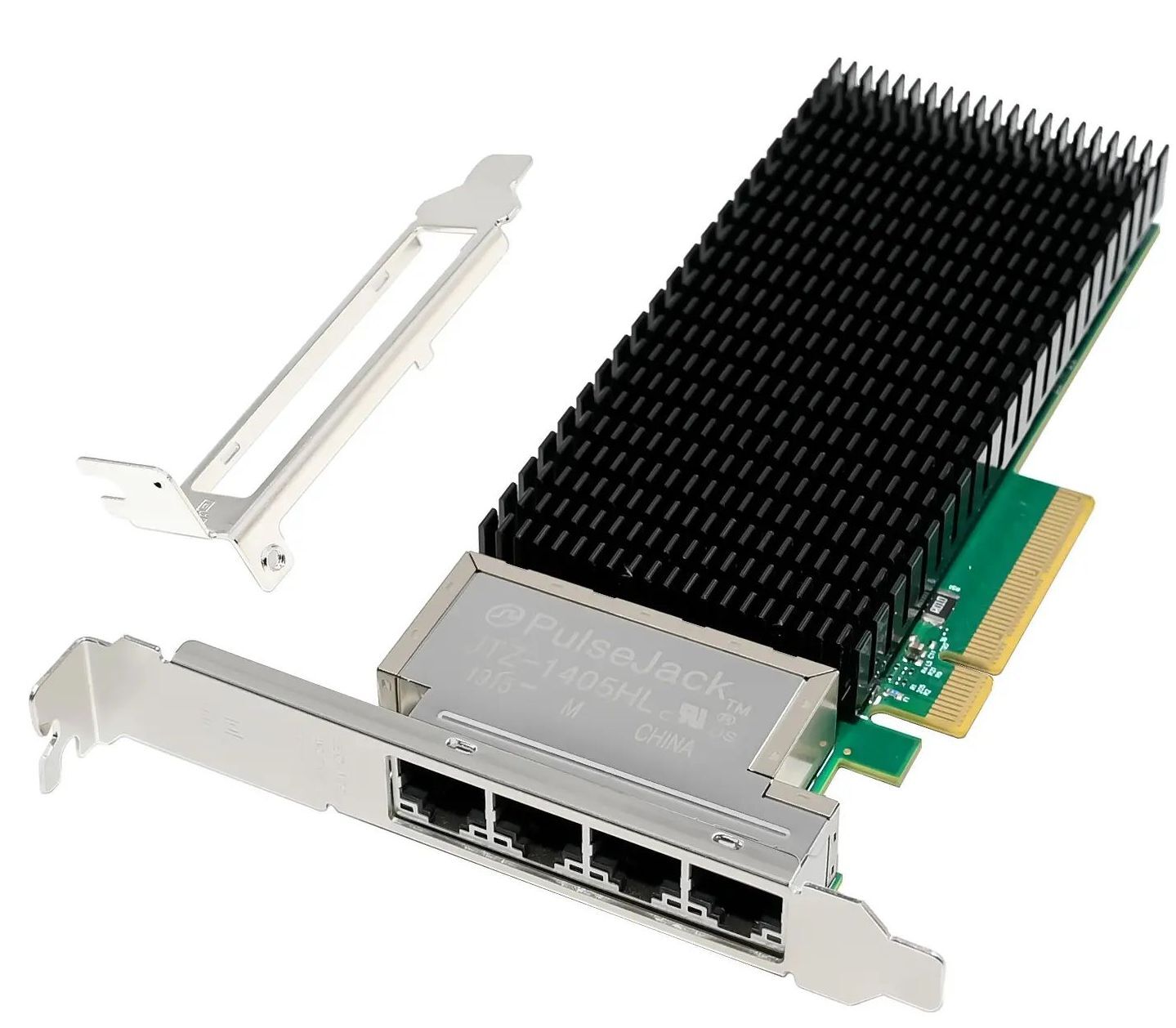

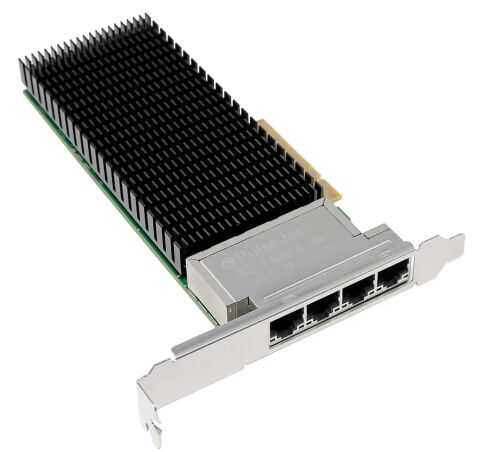

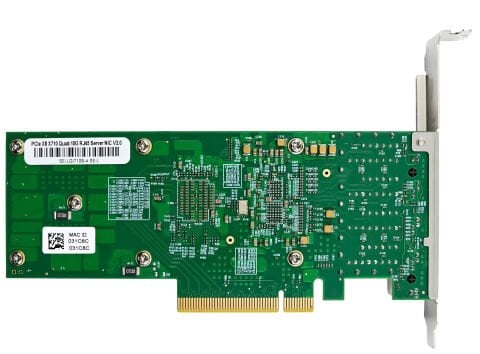

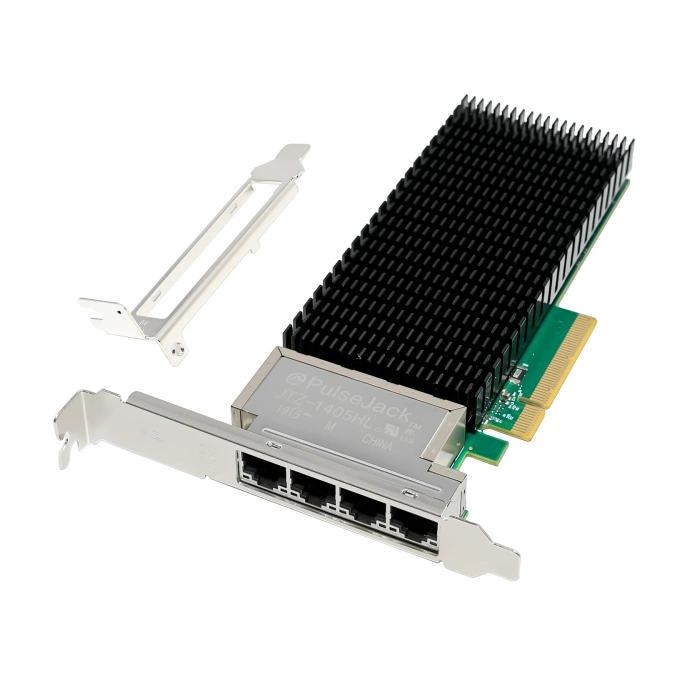

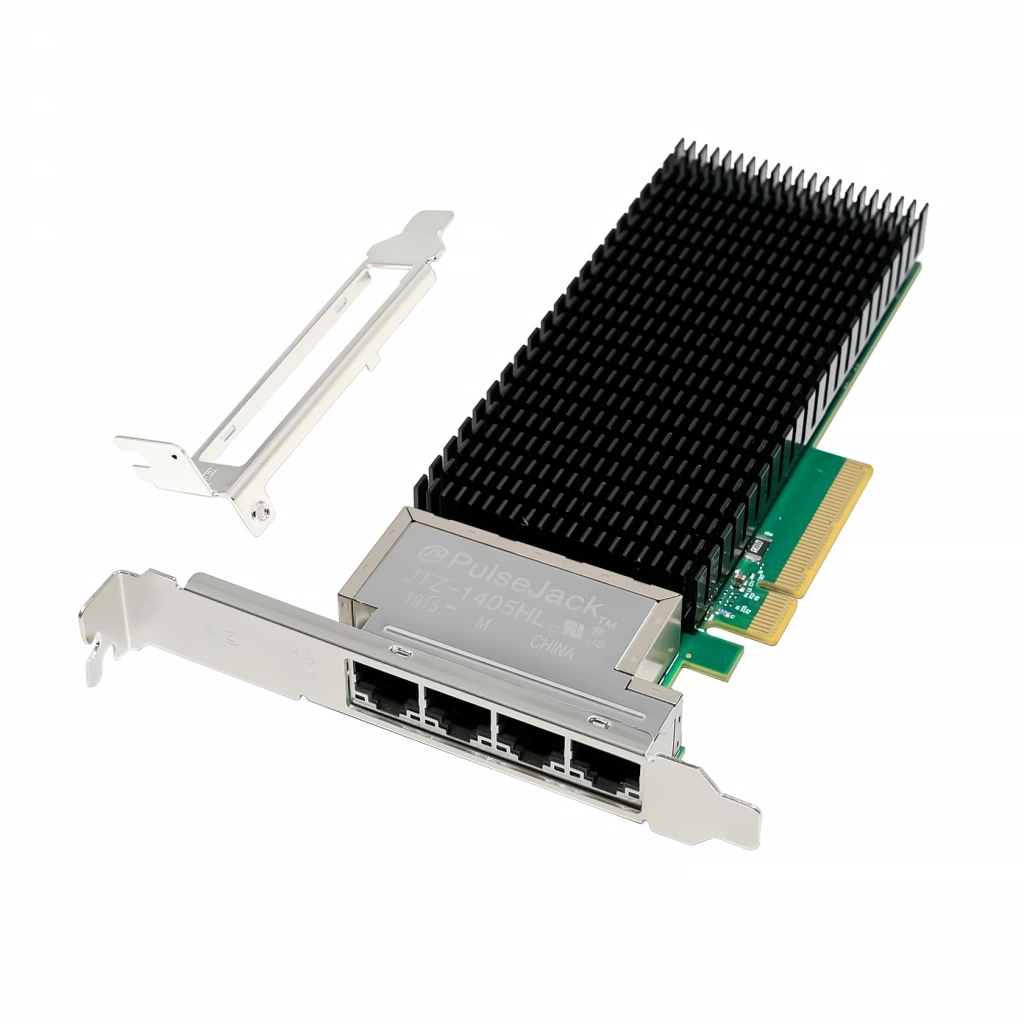

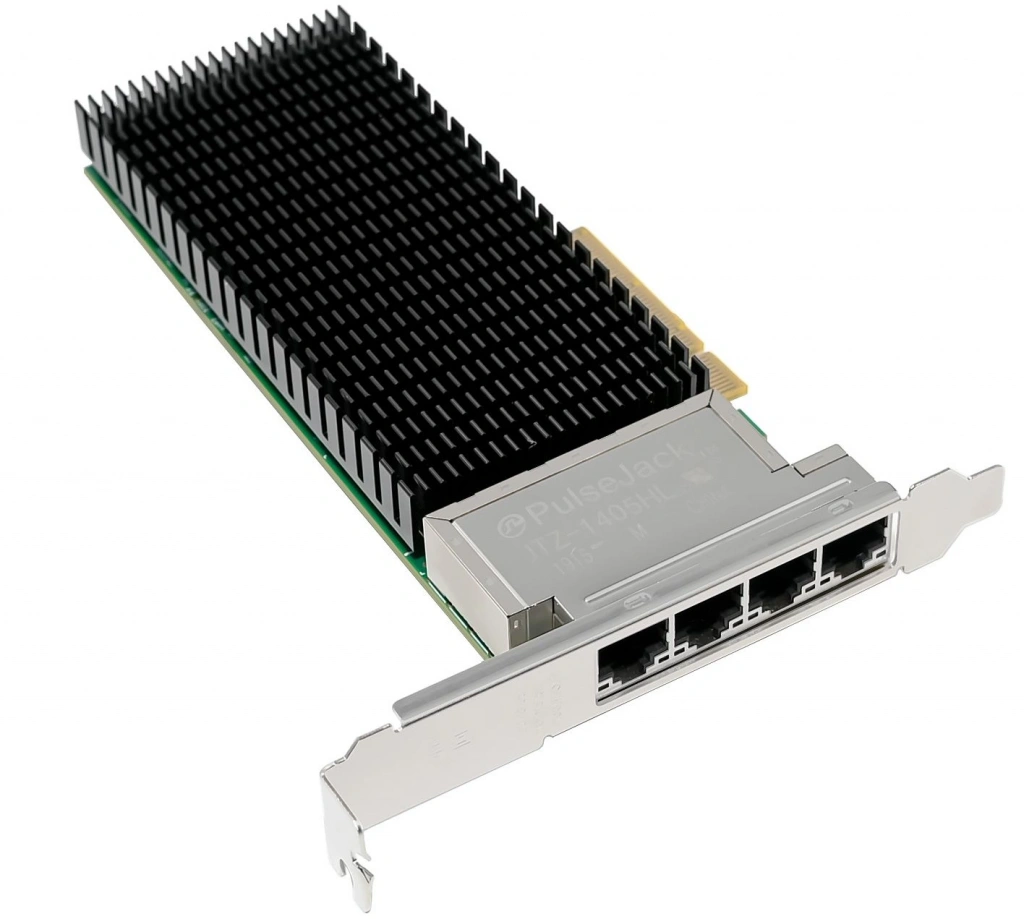

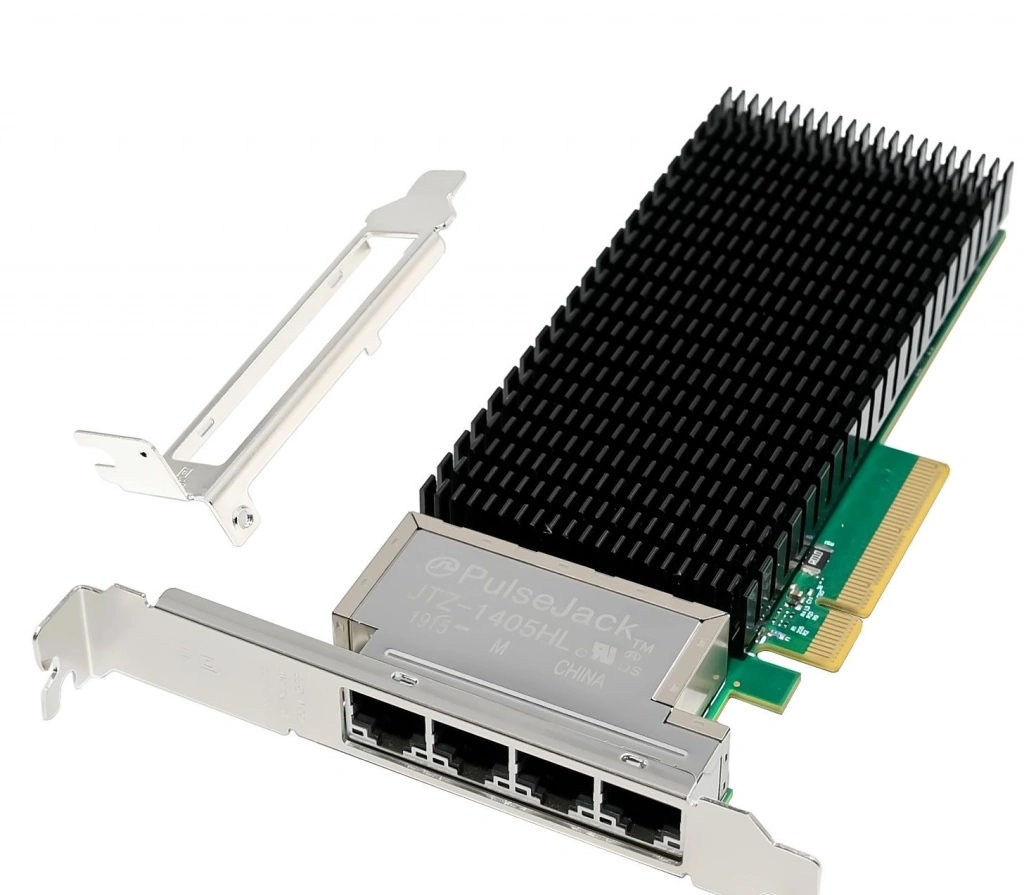

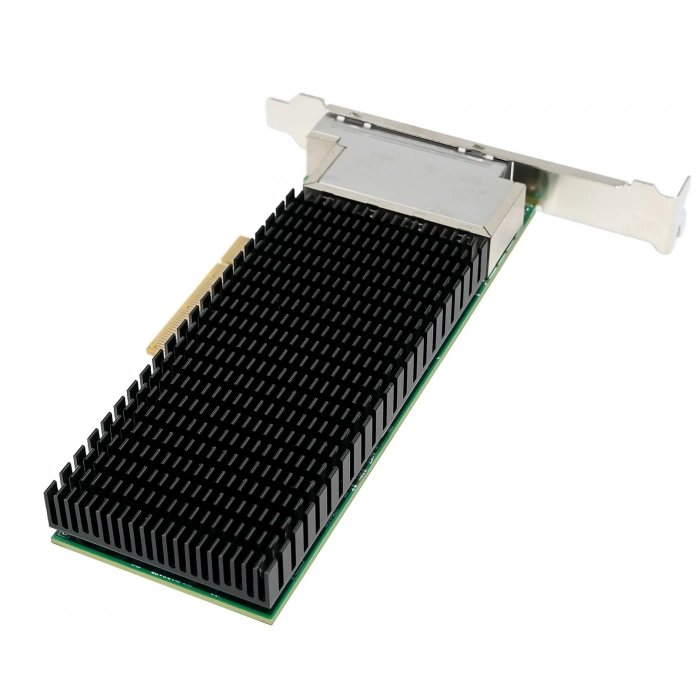

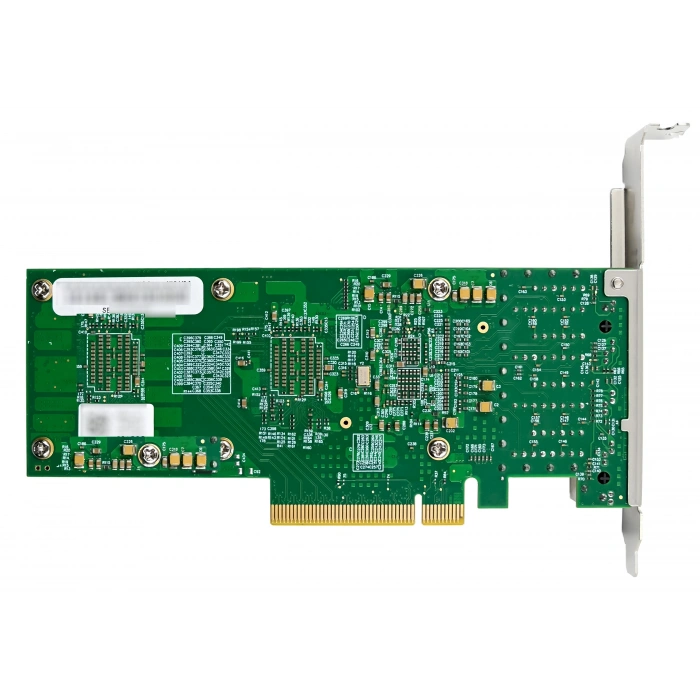

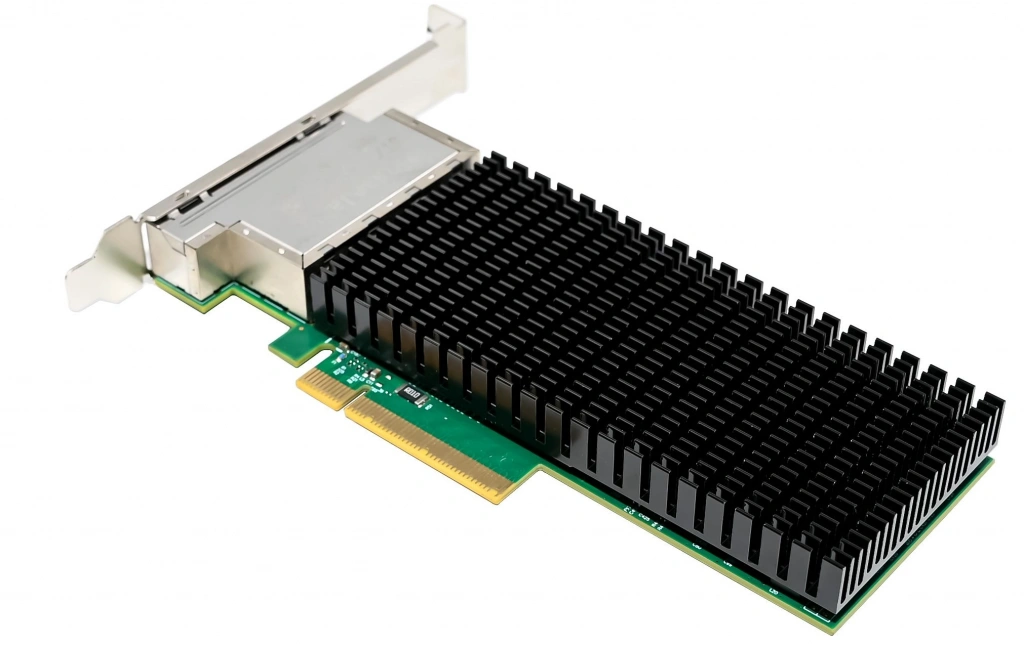

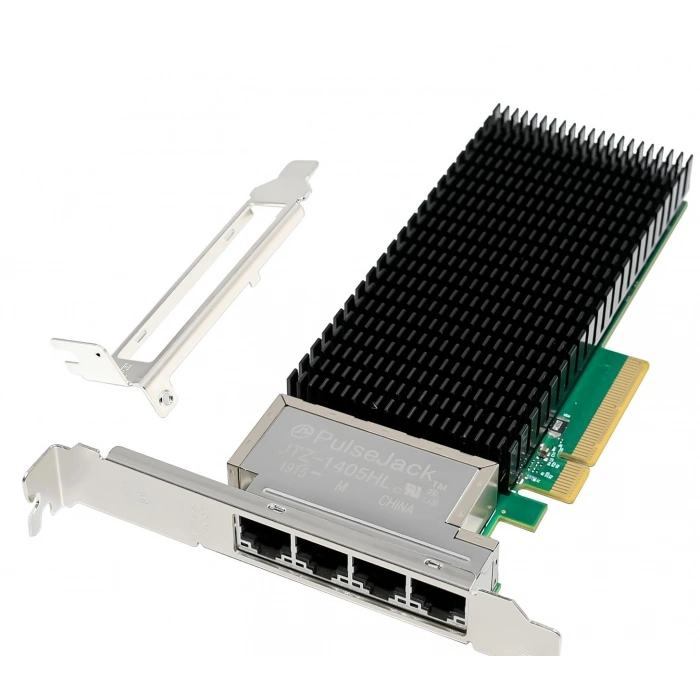

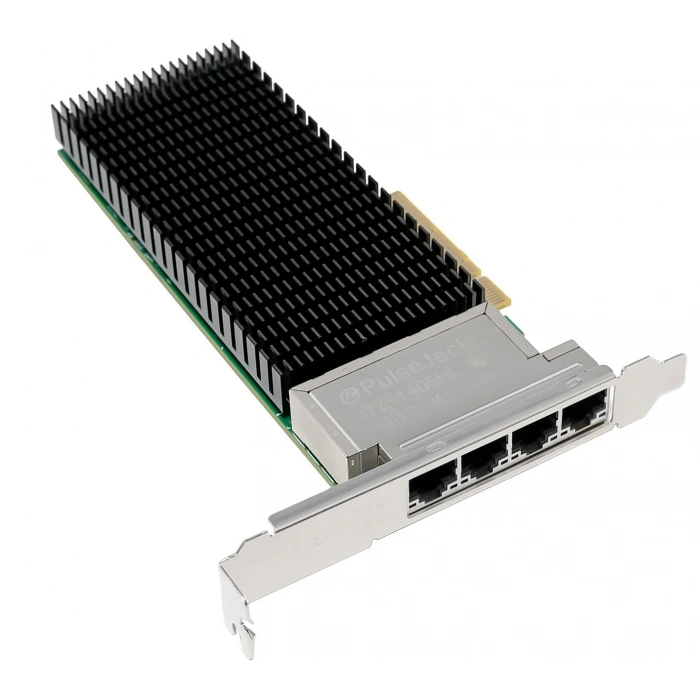

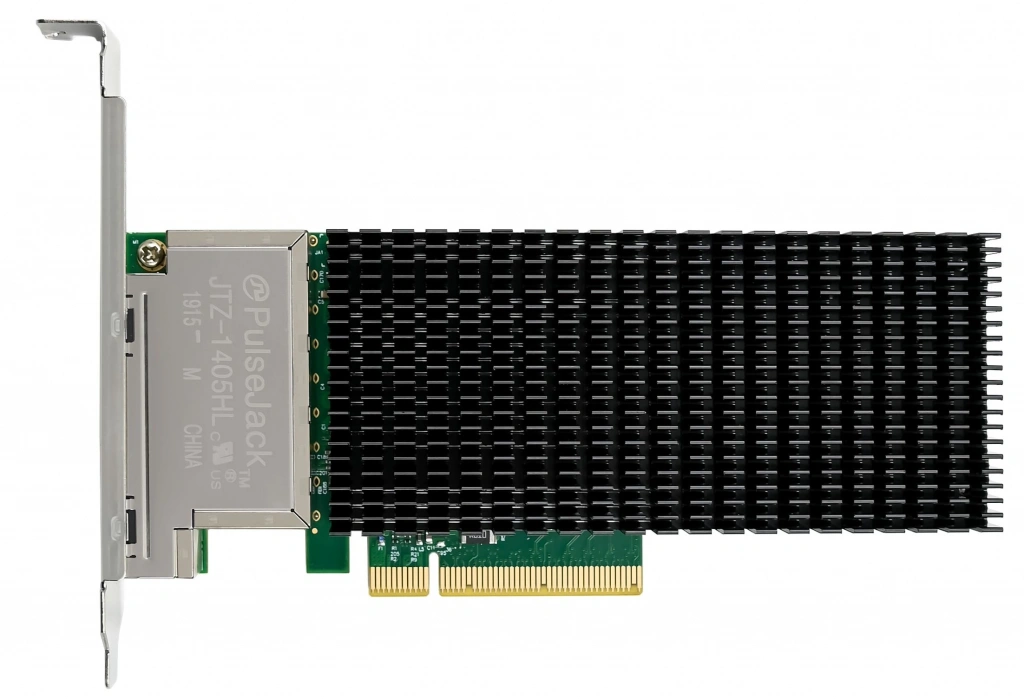

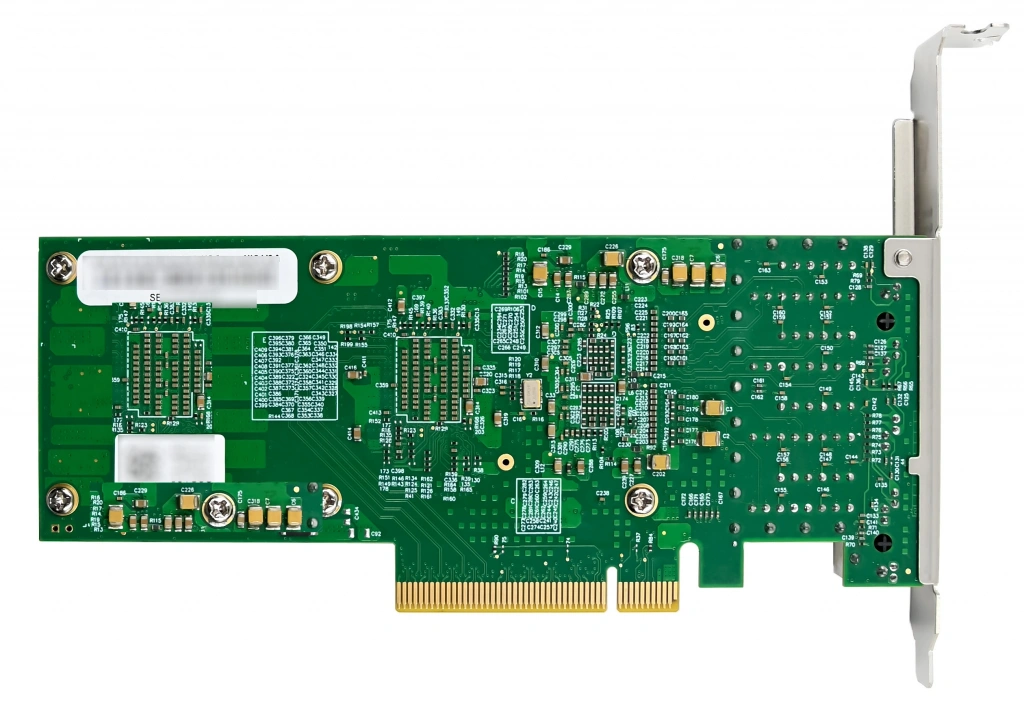

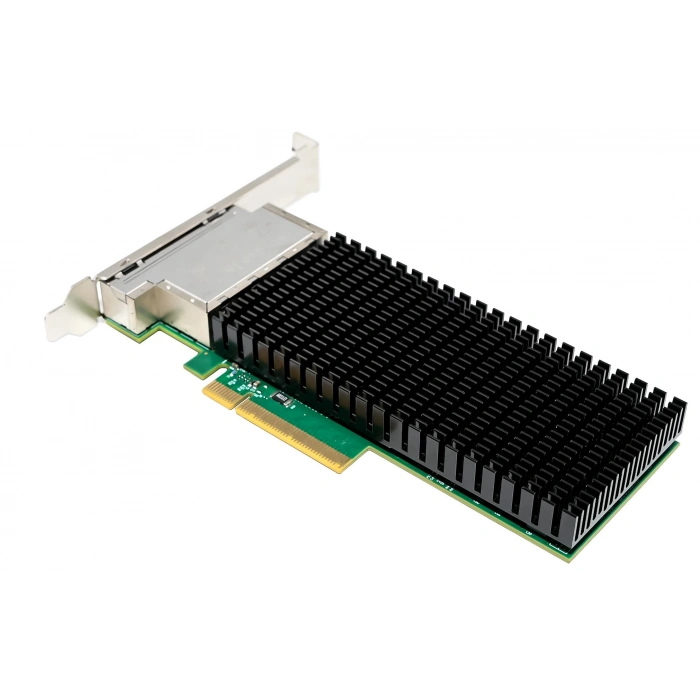

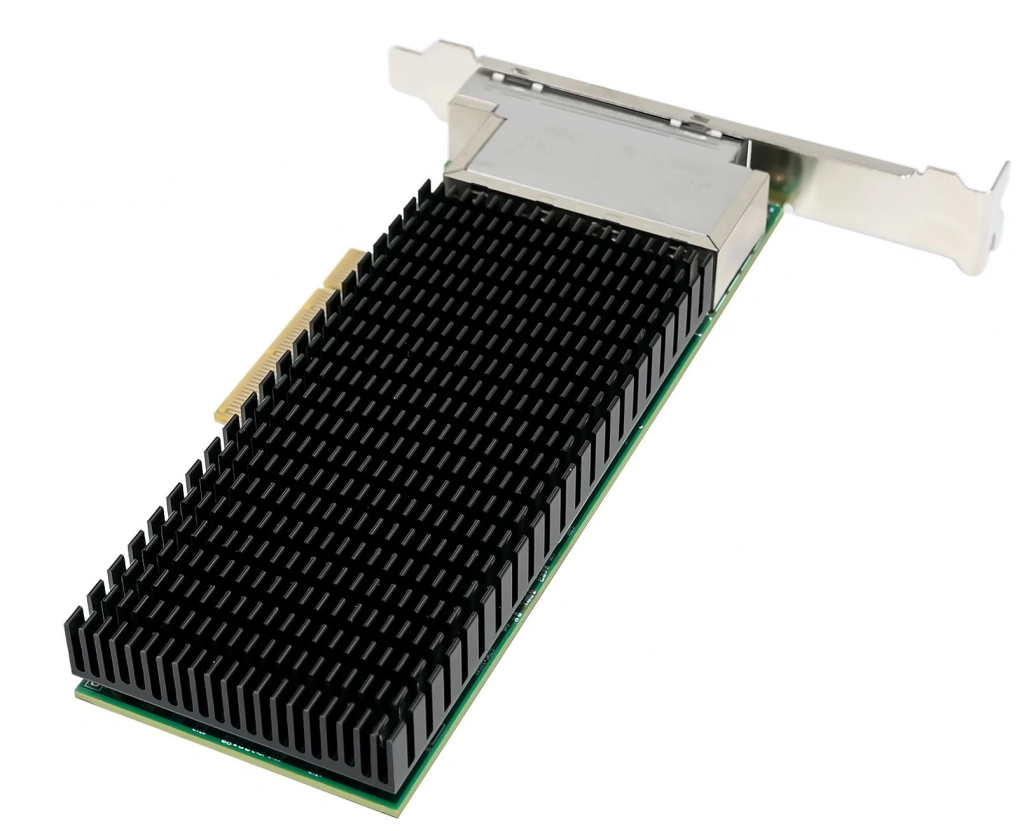

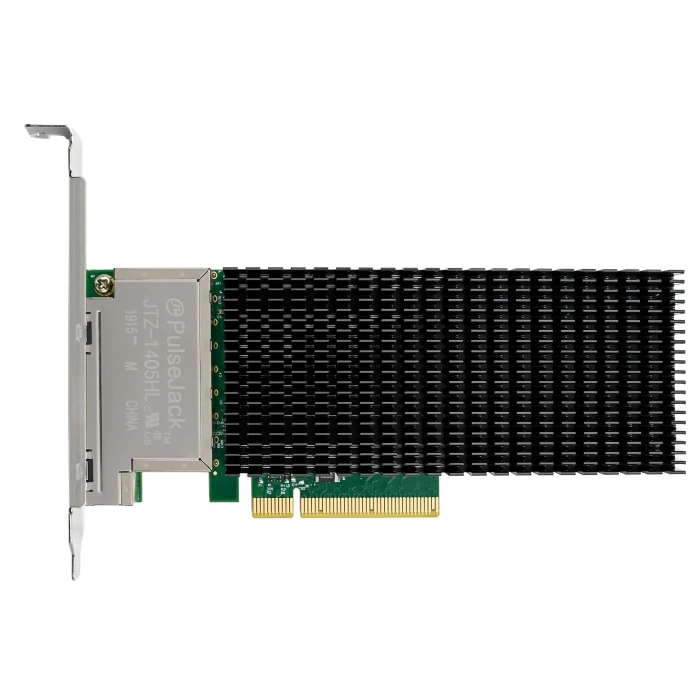

4-port RJ45 intel XL710-T4 ChipSet PCIe 3 x8 Ethernet Kartı | StorNET

4 Port 10Gbase Transfer, RJ45 , Full Height ve Low Profile Bracket,

Quad-port 10GBASE-T simplifies transition to 10 Gigabit Ethernet

▪ PCI Express (PCIe) v3.0, x8

▪ Standard CAT6A cabling with four RJ45 connectors for maximum system density

▪ Backwards compatible with existing 100BASE-T and 1000BASE-T networks

▪ Network Virtualization offloads including VxLAN, GENEVE, NVGRE, MPLS, and VxLANGPE with Network Service Headers (NSH)

▪ Intel Ethernet Flow Director for hardware-based application traffic steering

▪  Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments

▪ Data Plane Development Kit (DPDK) optimized for efficient packet processing

▪ Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)

▪ Intelligent offloads to enable high performance on servers with Intel Xeon processors

▪ I/O virtualization innovations for maximum performance in a virtualized server

Specification

• PCI-Express host interface specification v3.0 x8 and higher

• Supports the PCI Bus Power Management specification and section 5 of the PCI Express Base Specification

• PCI-Express lanes: x8

• Support quad 10Gbase-T/1000Mbase-T/100Mbase-T networks

• Network Virtualization offloads including VXLAN, NVGRE, Geneve and Network Service Headers.

• Intel Ethernet Flow director for hardware-based application traffic steering.

• Intelligent offloads to enable high performance with Intel Xeon processor-based servers

• Packet checksum offloads: Calculates IP, UDP, TCP, and Stream transmission Protocol checksums for insertion into transmitted packets and for integrity checking on received packets,

   Includes support for UDP and TCP checksums in both IPv4 and IPv6 data grams.

• I/O virtualization innovations for maximum performance in a virtualized server

• Support for optional End-to-End CRC generation and checking

• Supports up to 1024 LAN queue sets(768 typically available)

• Supports up to 384 VSIs with average of two TCs allocated per VSI

• Supports up to 16VEB/VEPA switching components

• IEEE802.3x flow control support

• IEEE802.3Q VLAN support with VLAN tag insertion, with stripping and packet filtering for up to 4096 VLAN tags.

• Jumbo Frame support 9728 bytes
