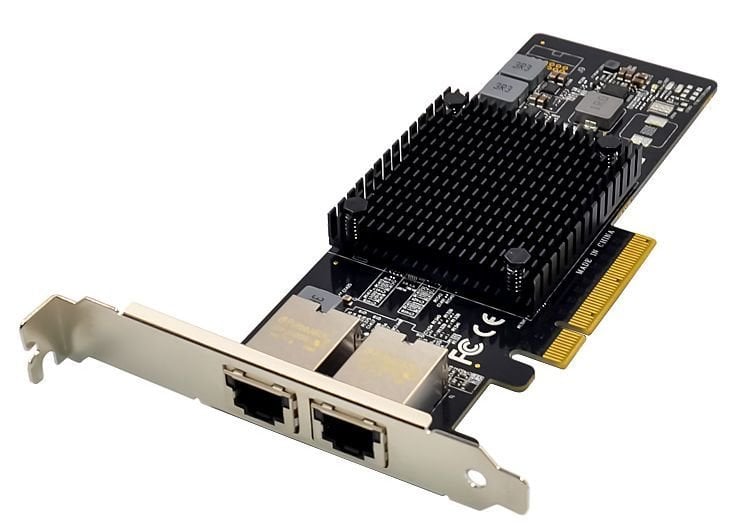

Ethernet Kartı Intel X550-T2 x8 Dual / 2 Port 10GBE | StorNET
Pci Express x8 Slot Uyumlu Versiyondur.
817738-B21 HPE Ethernet 10Gb 2‑port BASE‑T X550‑AT2 Adapter
ile uyumludur
X550-T2 Ethernet Kartı Genel Özellikleri
• PCI-Express host interface specification v3.0
• Complies with PCI Bus Power Management Interface Specification Rev1.2
• PCI-Express lanes: x8
• Complies with dual port 10GbE RJ45 copper port
• Operate Speeds: 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s
• 10GBASE-T as per the IEEE 802.3an standard
• 1000BASE-T and 100BASE-TX as per the IEEE Standard 802.3-2012
• NBASE-T as per the IEEE P802.3bz/D1.1 Draft Standard for Ethernet Amendment
• Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
• Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
• Supports Receive-side scaling (RSS)
• Supports IPv 4, IPv 6 protocols
• Supports Jumbo Frames up to 15.5K
• Supports UDP.TCP and IP Checksum offloading
• 128 transmit queues
• Statistics for management and RMON
• Support for 64 virtual machines per port (64VMs x2 queues)
• Support for Data Center Bridging(DCB) (802.1Qaz, 802.1Qbb, 802.1p)
• Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
X550-T2 Ethernet Kartı Teknik Özellikleri
| Essentials | |
| Product Collection | Intel X550-T2 10GbE Network Adapter |
| Controller Processors | Intel ELX550-AT2 |
| Bus Type/Bus Width | PCIe 3.0 (8 GT/s), x8 lane PCIe, operable in x16 slots |
| Connections | 2 x RJ45 Copper |
| Data Rate Supported | 10GbE/5GbE/2.5GbE/1GbE/100Mb |
|
Cable Distances |
10GBASE-T: 100 m using CAT6A, 55 m using CAT6 |
| 1000BASE-T: 100 m using CAT5e, CAT6 or CAT6A | |
|
Bracket |
Full-height bracket installed. Low-profile bracket included in package |
| Dimension |
167 mm x 69 mm (PCIe Board) |
| Technical Specifications | |
| Network Standards |
10GBASE-T as per the IEEE 802.3an standard |
| 1000BASE-T and 100BASE-TX as per the IEEE Standard 802.3-2012 | |
| NBASE-T as per the IEEE P802.3bz/D1.1 Draft Standard for Ethernet Amendment | |
| Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds | |
| Interrupt Levels | INTA, MSI, MSI-X |
| Manageability | Wired for Management (WfM) Baseline v2.0 Enabled for Servers |
| DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP | |
| Remote Installation Services (RIS) | |
| PXE 2.0 enabled through boot Read-Only Memory (ROM) | |
| Virtualization Technology |
Multi-mode I/O virtualization operations, VxLAN stateless offloads, NVGRE stateless offloads, Virtual Machine Device Queues (VMDq) |
| System Requirements | |
| Windows Client | Windows 11/ 10/ 8.1/ 8/ 7 |
| Windows Sever | 2008 R2/ 2012/ 2012 R2/ 2016/ 2019/ 2022 |
| Linux |
RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13 |
| Environment & Certification | |
| Power Consumption | Max. 13W |
| Storage Humidity Maximum | 90% non-condensing relative humidity at 35 °C |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| LED Indicators |
LINK (solid) and ACTIVITY (blinking) |
| LINK SPEED (Green = 10Gbps; Yellow = 1Gbps; OFF=100 Mbps) | |
| Certifications | CE FCC RoHS |
Ethernet Kartı Intel X550-T2 x8 Dual / 2 Port 10GBE | StorNET genel Özellikleri
| Slot Demirler | : | Low Profile ( Kısa Demir ), Full Height ( Uzun Demir ) |
| Port Tipi | : | RJ-45 |
| Transfer Hızı | : | 10 Gbps / Her Port |
| Port Sayısı | : | 2 Port Dual |
| Marka | : | intel, StorNET |
| Bus type | : | PCIe Gen3x8, PCIe 3.0 x4 |
| ChipSet | : | intel |
| PoE tipi | : | PoE yok |
| Teknoloji | : | Ethernet Kart |
