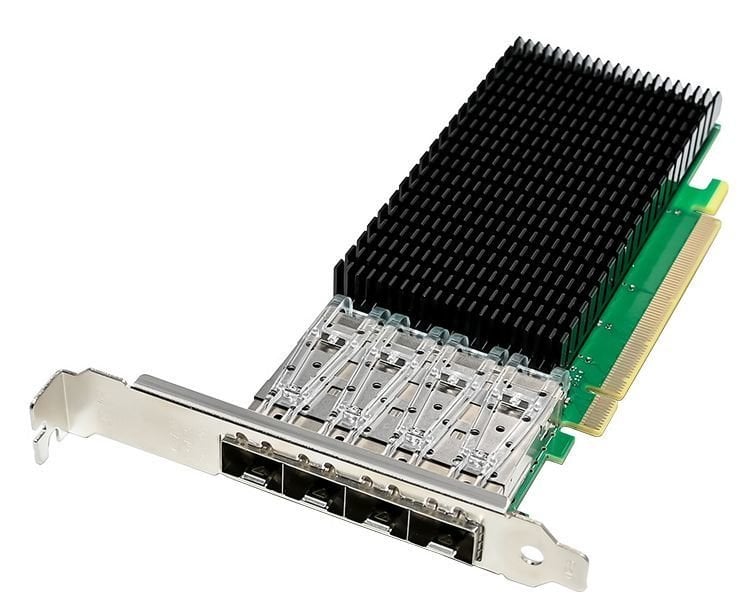

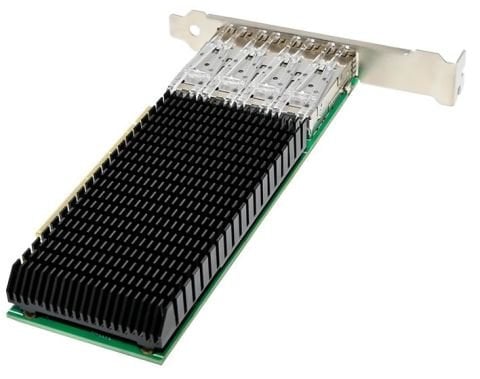

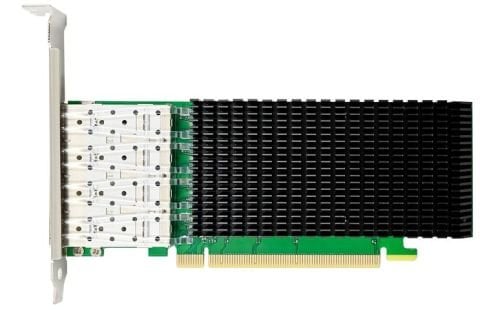

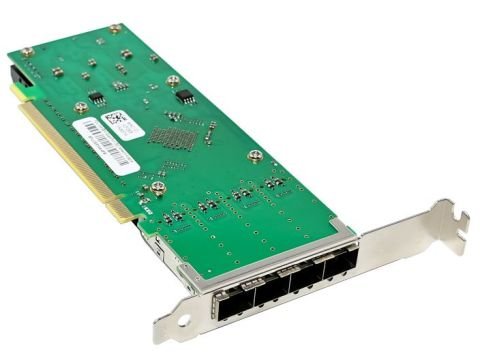

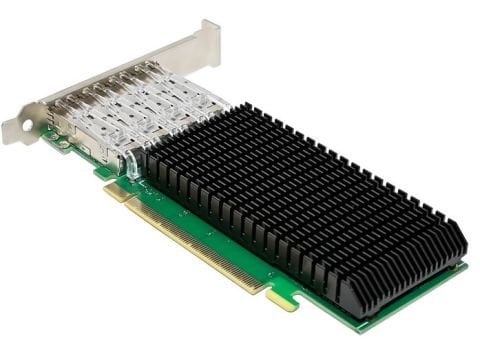

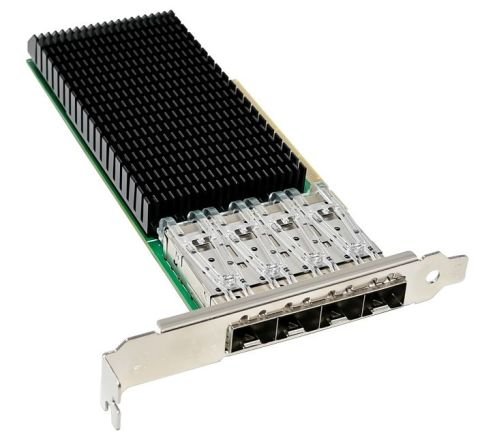

intel Ethernet Kartı 4-Port 25G E810-XXVDA4 PCIe Gen4x16 StorNET
4-Port her port SFP28 slota sahip Fiber Ethernet Kartı
25Gbase hızında intel(tm) E810-XXVDA4 ChipSet PCIe Gen4x16 yuva Ethernet Kartı.
- Full Height ve Low Profile Bracket dahildir.

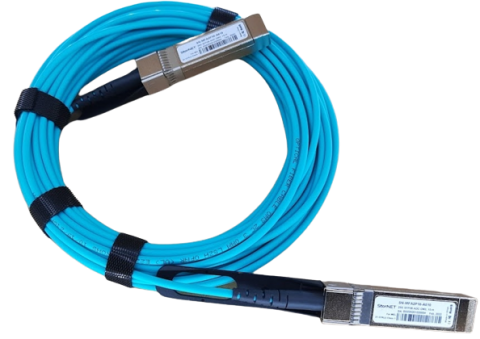

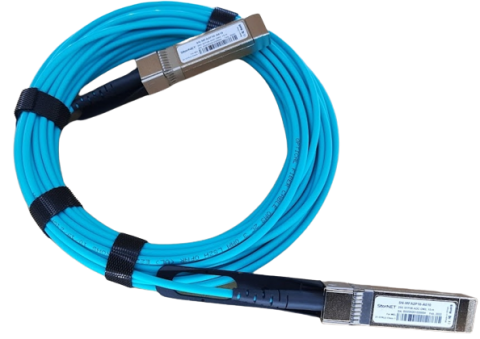

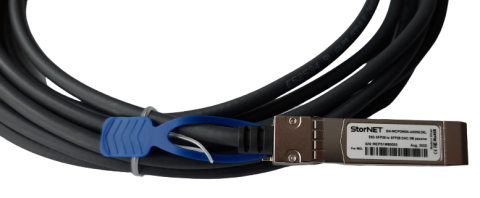

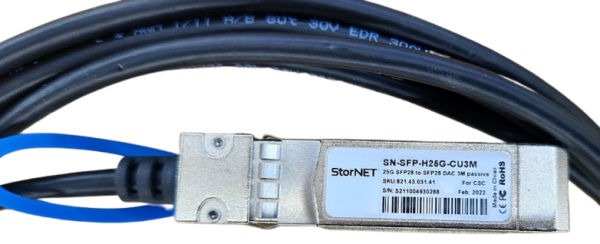

- Birlikte kullanabileceğiniz 25G SFP28 Transceiver yada DAC Kablo modelleri
- Ürün ChipSetine ait Teknik Dosya
intel Ethernet Kartı 4-Port 25G E810-XXVDA4 uyumlu StorNET Transceiver ve DAC Kablo Modelleri ile satın alabilirsiniz.
10/25GbE network adapter optimized to meet the performance needs for dynamic workloads
• Quad-Port SFP28 • Dynamic Device Personalization (DDP) • PCI Express (PCIe) 4.0 x8 • Supports both RDMA iWARP and RoCEv2 • Application Device Queues (ADQ) • IEEE 1588 Precision Time Protocol (PTP)
Intel Ethernet 800 Series network adapters with four 25GbE SFP28 ports and key performance optimizations,
The E810-XXVDA4 supports solutions across Cloud, Enterprise, and Communications. improve application efficiency and network performance with innovative and versatile capabilities.
Sepcification
▪ Compliance with PCI Express 4.0 specification and backward with PCI Express3.0
▪ Concurrency for 256 non-posted requests.
▪ Supports multiple port speeds with a single architechture: 25/10/1GbE
▪ 100Gb/s throughput for each TX and RX, up to 80Mpps for TX and 90Mpps for RX
• Network interface 25Gb: 25GBASE-CR/KR, 25G-AUI C2C/C2M, 25GBASE-CR1/KR1 10Gb: 10Gb/10GABSE-KR, 10GSFI/SFP+ • Support Virtualization features 8 Physical functions (PF) SR-IOV with up to 256 Virtual Functions (VF) 768 Virtual Station interfaces (VSI) Microsoft VM Queue(VMQ) VMware NetQueue
▪ Flexible Ethernet Port Configuration with Ethernet Port Configuration tool(EPCT)
▪ Stateless offloads: TCP/UDP segment offload, large segment offload, checksum offload
▪ IEEE1588 Precision Time Protocol Support
▪ RDMA support both iWARP and RoCE v2
▪ Enhanced DPDK for Network Functions Virtualization acceleration, advanced packet forwarding, and highly effective packet processing
▪ Deliver consistent application performance with Application Device Queues
▪ Improve packet processing efficiency with enhanced Dynamic Device Personalization (DDP)
▪ Intel® Ethernet Adaptive Virtual Function (Intel® Ethernet AVF)
▪ Jumbo frame of up to 9728 bytes
intel Ethernet Kartı 4-Port 25G E810-XXVDA4 PCIe Gen4x16 StorNET genel Özellikleri
| Slot Demirler | : | Low Profile ( Kısa Demir ), Full Height ( Uzun Demir ) |
| Port Tipi | : | SFP28 |
| Transfer Hızı | : | 25 Gbps / Her Port |
| Port Sayısı | : | 4 Port Quad |
| Marka | : | StorNET |
| Bus type | : | PCIe 4.0 x16 |
| ChipSet | : | intel |
| PoE tipi | : | PoE yok |
|
Essentials |
|
| Product Collection | Intel E800 25GbE Network Adapter |
| Controller Processors | Intel E810-CAM1 |
| Bus Type/Bus Width | PCI Express (PCIe) 4.0 x16 |
| Configuration | 4 x 25G SFP28 Port |
| Data Rate Supported | 25/10/1GbE Per Port |
|
Bracket |
Full-height bracket installed, Low-profile bracket included in package |
| Dimension |
167 mm x 69 mm (PCIe Board) |
| Technical Specifications | |
|
Network Standard |
Compliance with the following IEEE 802.3 standards |
| 25GbE / 10GbE / 1GbE | |
| IEEE 802.3by, Ethernet Consortium25 Gigabit Ethernet | |
| IEEE 802.3by 25 Gigabit Ethernet | |
| IEEE 802.3ae 10 Gigabit Ethernet | |
| IEEE 802.3ap based auto-negotiation and KR startup | |
| IEEE 802.3ad, 802.1AX Link Aggregation | |
| IEEE 802.1Q, 802.1P VLAN tags and priority | |
| IEEE 802.1Qau (QCN) | |
| Congestion Notification | |
| IEEE 802.1Qaz (ETS) | |
| IEEE 802.1Qbb (PFC) | |
| IEEE 802.1Qbg | |
| IEEE 1588v2 | |
| Jumbo frame support (9.7KB) | |
|
Network Protocol (Ethernet) |
25GBASE-CR, 25GBASE-KR, 25G-AUIC2C, 25G-AUIC2M, 25GBASE-CR1, 25GBASE-KR1 |
| 10GBASE-KR, 10GSFI, 10G-SFP+ | |
| Virtualization Technology |
Next-generation VMDq, SR-IOV, VLAN, VxLAN, NVGRE, GENEVE |
| Advanced Technologies | iWARP/RDMA, RoCEv2/RDMA, Intel® Data Direct I/O Technology, Storage Over Ethernet：SMB Direct |
| System Requirements | |
| Windows Client | Windows 11/ 10 |
| Windows Sever | 2016/ 2019/ 2022 |
| Linux | RHEL 9.1/ 8.7, SLES15 PS4, Ubuntu 22.04/ 20.04, Debian11, FreeBSD 13/12.3 |
| Environment & Certification | |
| Power Consumption | Max. 22W |
| Storage Humidity Maximum | 90% non-condensing relative humidity at 35 °C |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| LED Indicators | ACTIVITY (blinking) NO ACTIVITY (off) LINK SPEED (Green = 100GbE; Amber = less than 100GbE; OFF = no link) |
| Certifications | CE FCC RoHS |
